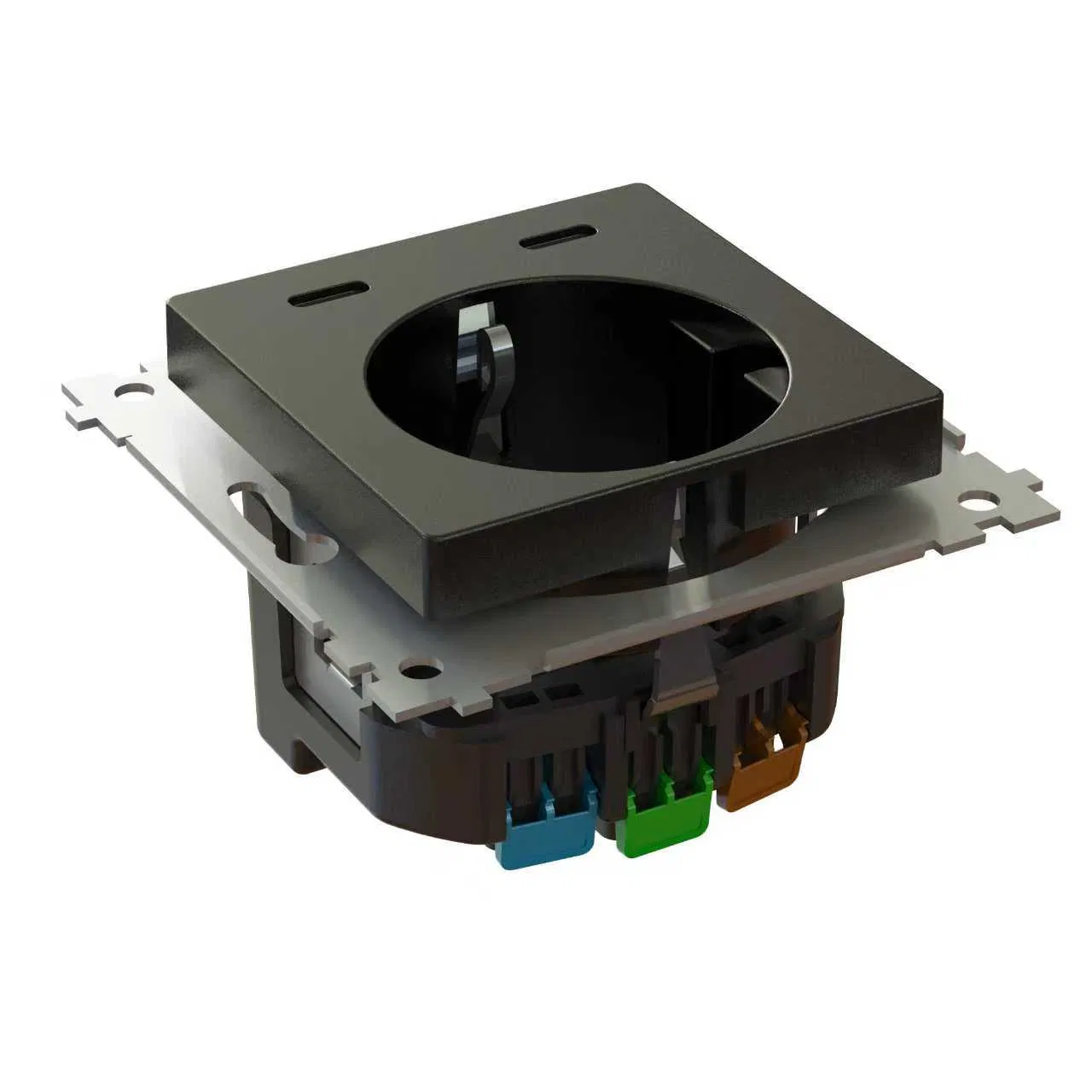

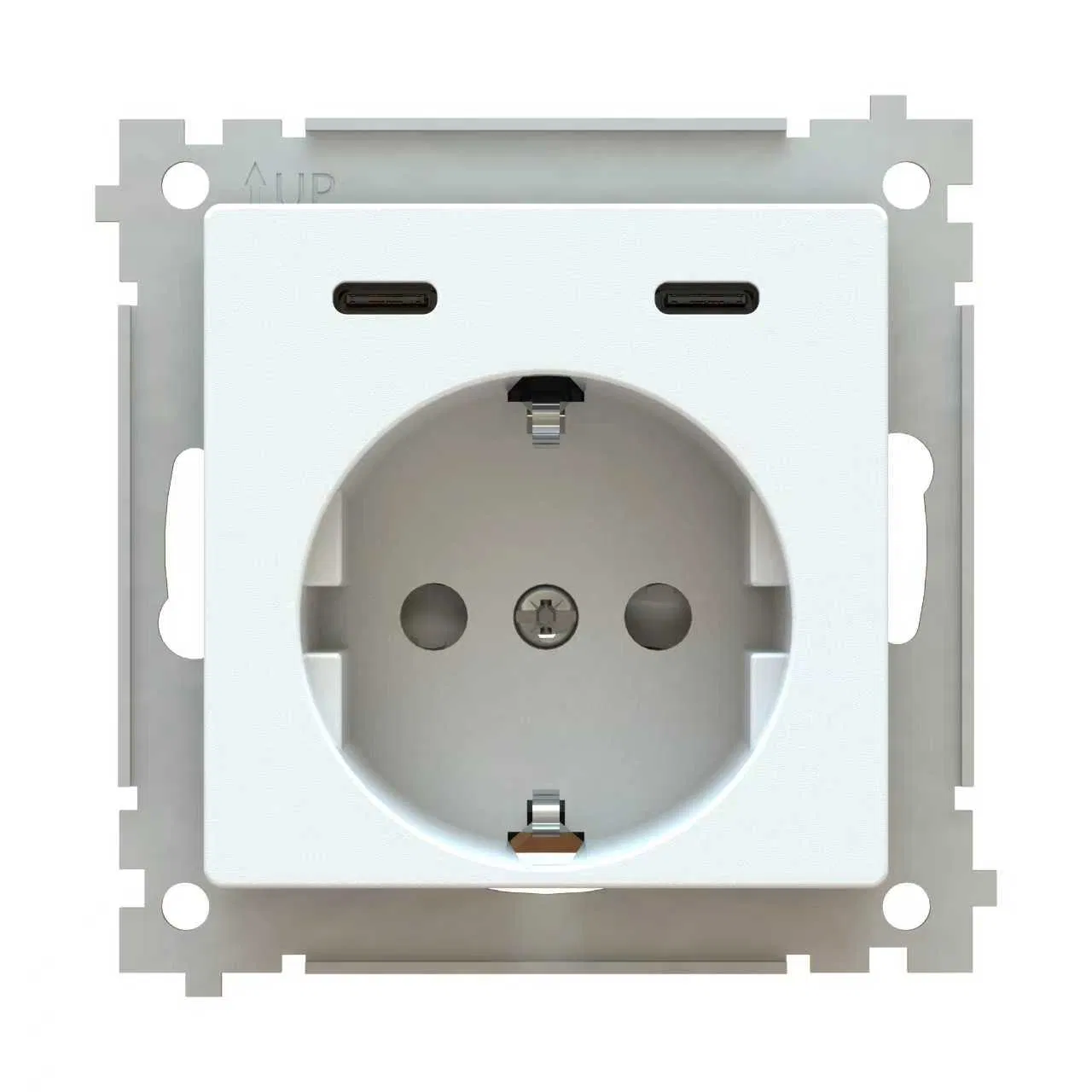

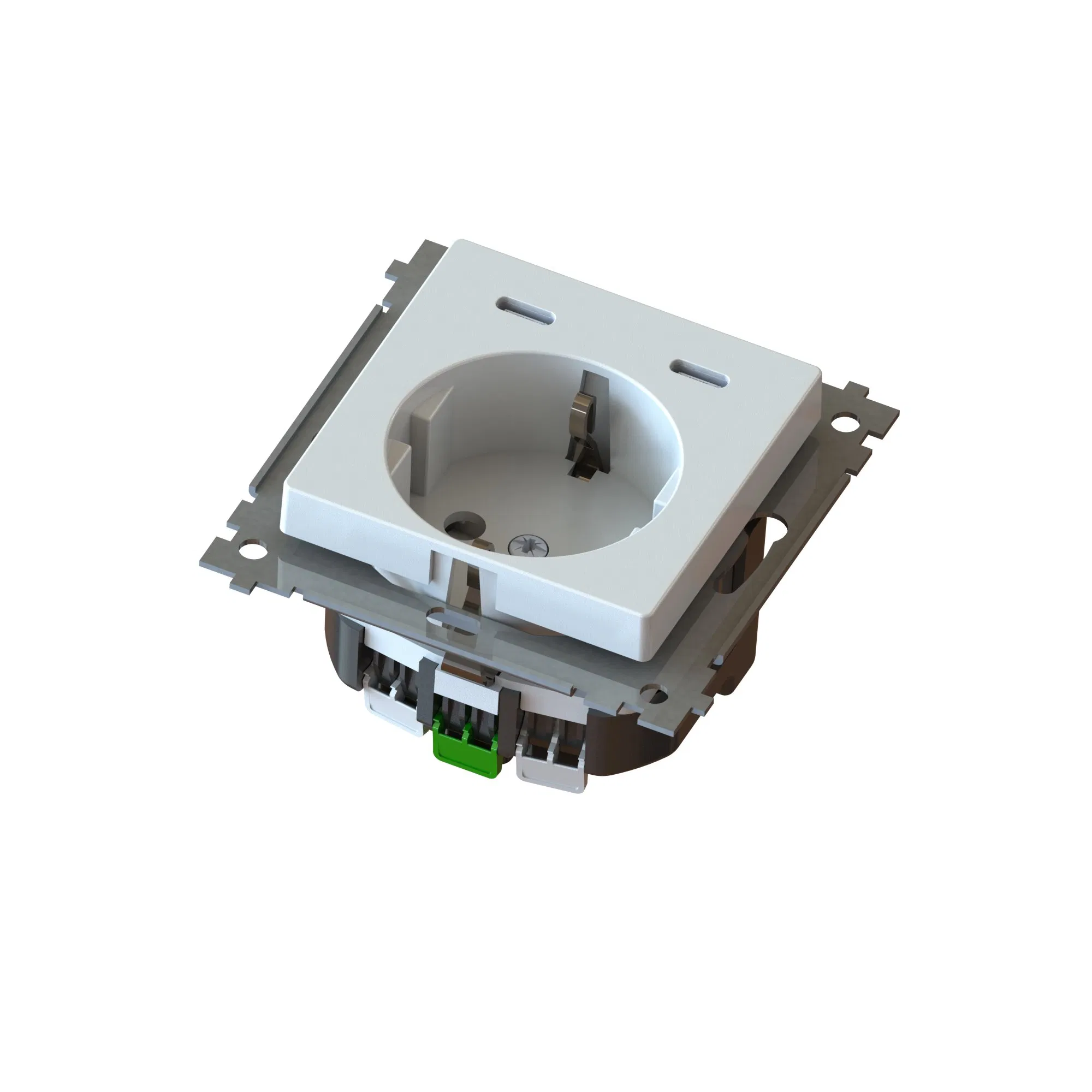

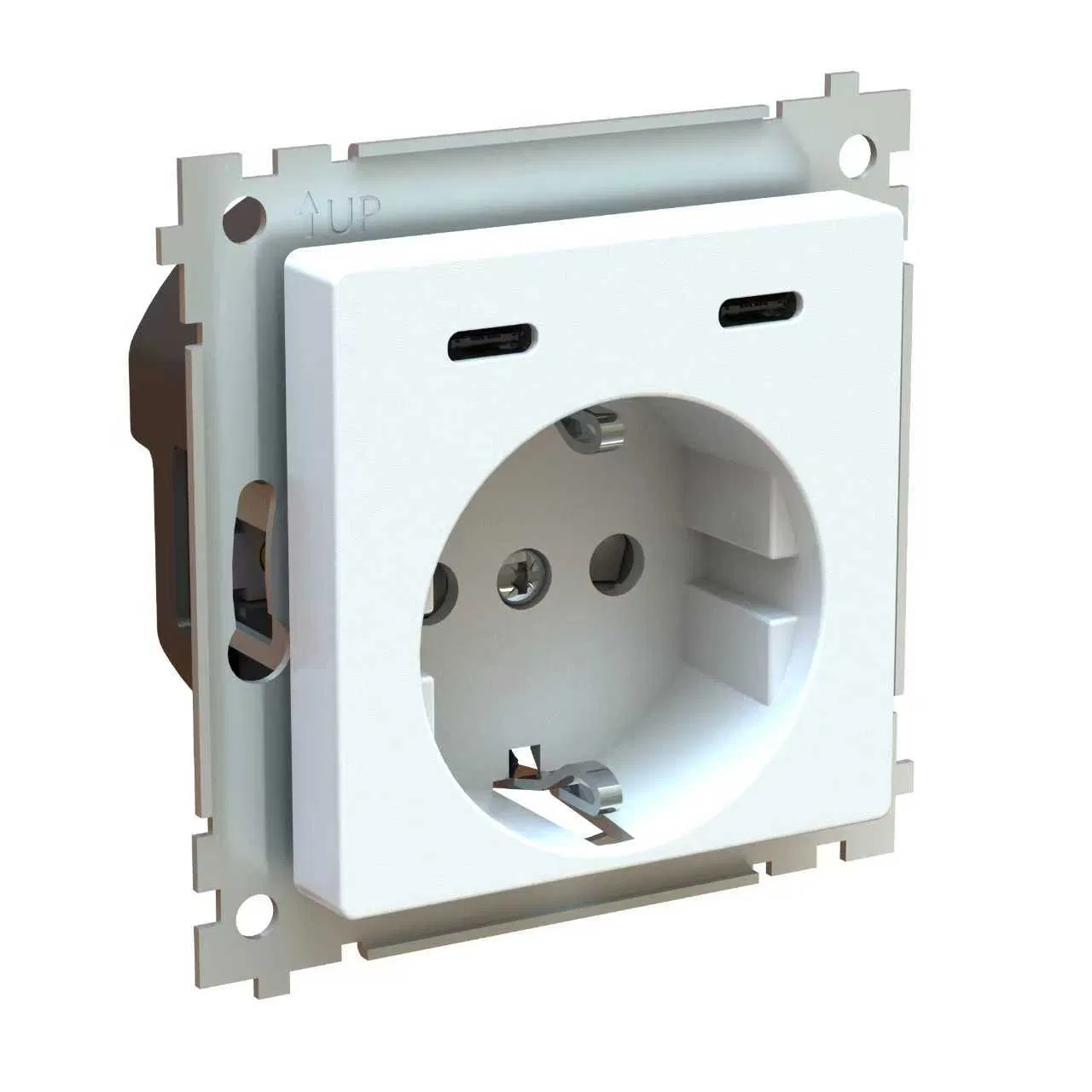

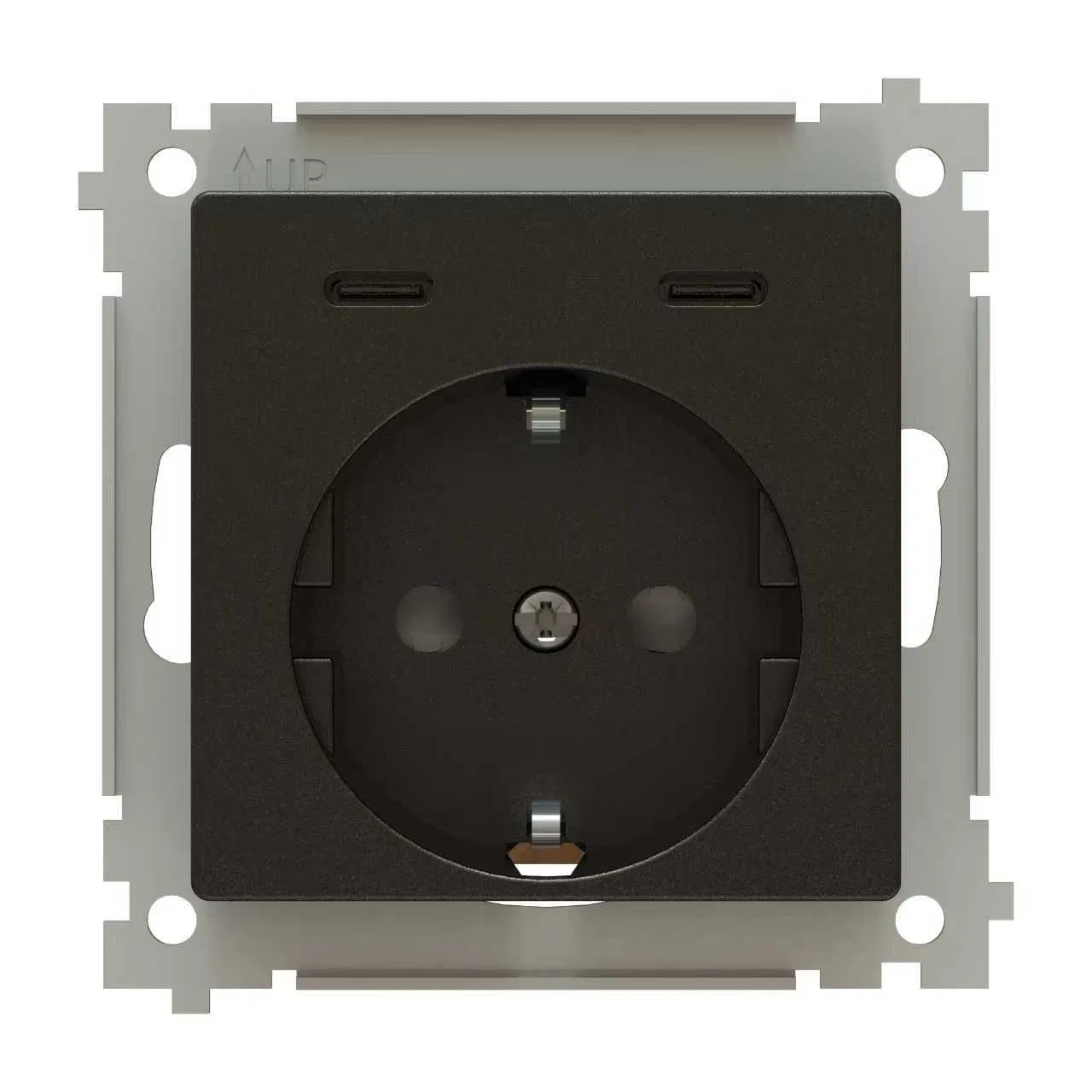

Schuko Socket + USB C Fast Charge 45mm Modular Insert

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Rated Current:16A

Shell Material:Flame Retardant PC Plastic

Application:Commercial, Industrial, Hospital, Residential

Function:USB Socket, Ordinary Socket

IP Rating:IP20

Certification:CE, ROHS

Number of Holes:Single Hole

USB Ports:2 x USB-C

Model	Socket outlet with protective contact CEE 7/3 (type F)
Nominal Voltage	230 V
Frequency	50-60 Hz
Nominal Current	16 A
USB-C Ports	2
Mounting Method	Flush-mounted
Material Quality	Thermoplastic (Halogen free)
Overvoltage Protection	Yes
Fault Current Protection	Yes
Device Dimensions	51.35mm x 53.5mm x 44mm
Impact Strength	IK04
Protection Degree	IP20

What is the charging capability of the USB ports?

The socket is equipped with 2 USB-C ports designed for fast charging, integrated directly into the modular 45mm insert.

Is the shell material safe for residential use?

Yes, the shell is made of Flame Retardant PC Plastic, which meets safety standards for residential, commercial, and industrial applications.

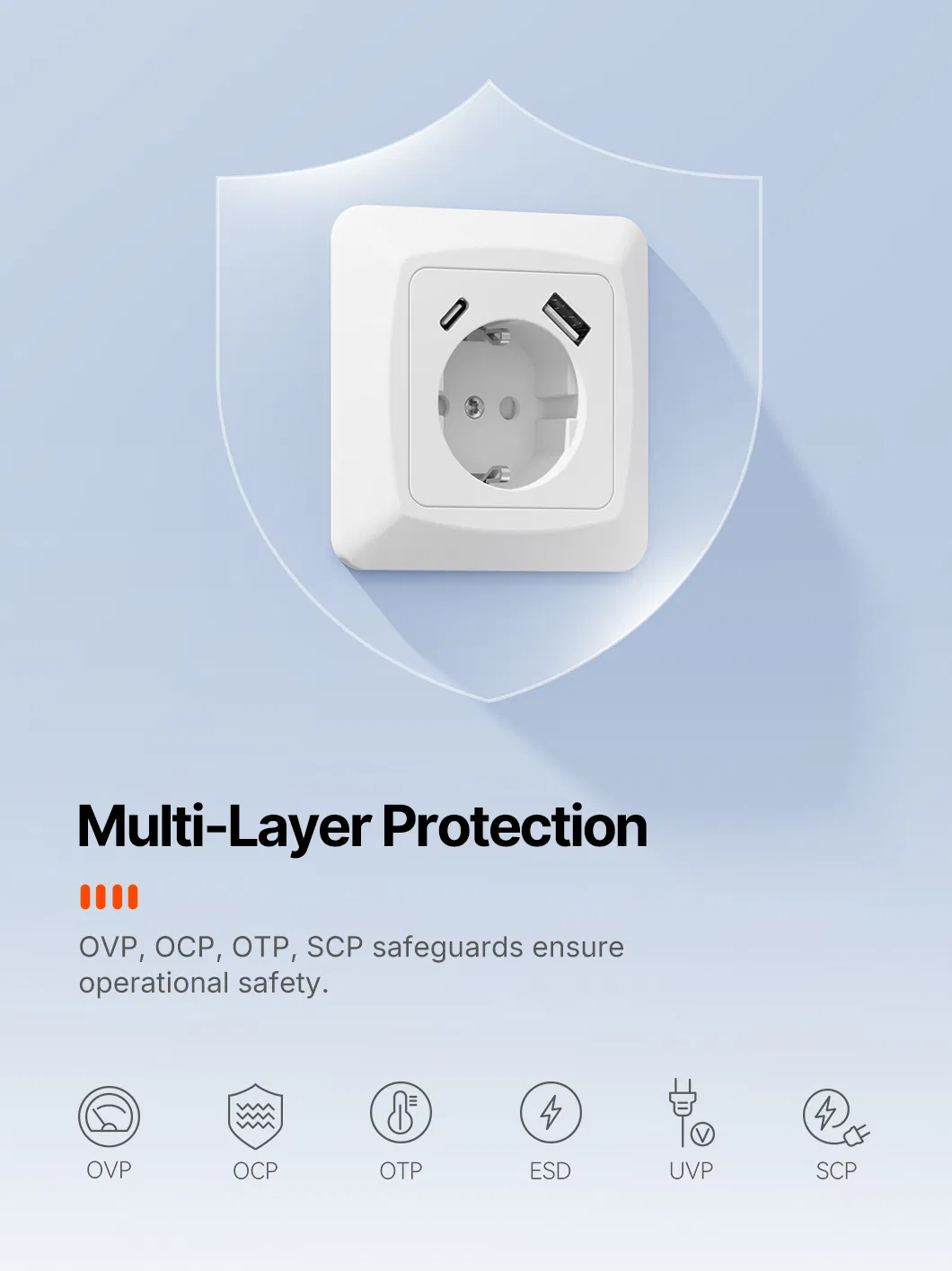

Does this socket include safety protections?

Absolutely. It features integrated overvoltage protection, fault current protection, and includes a miniature fuse for enhanced safety.

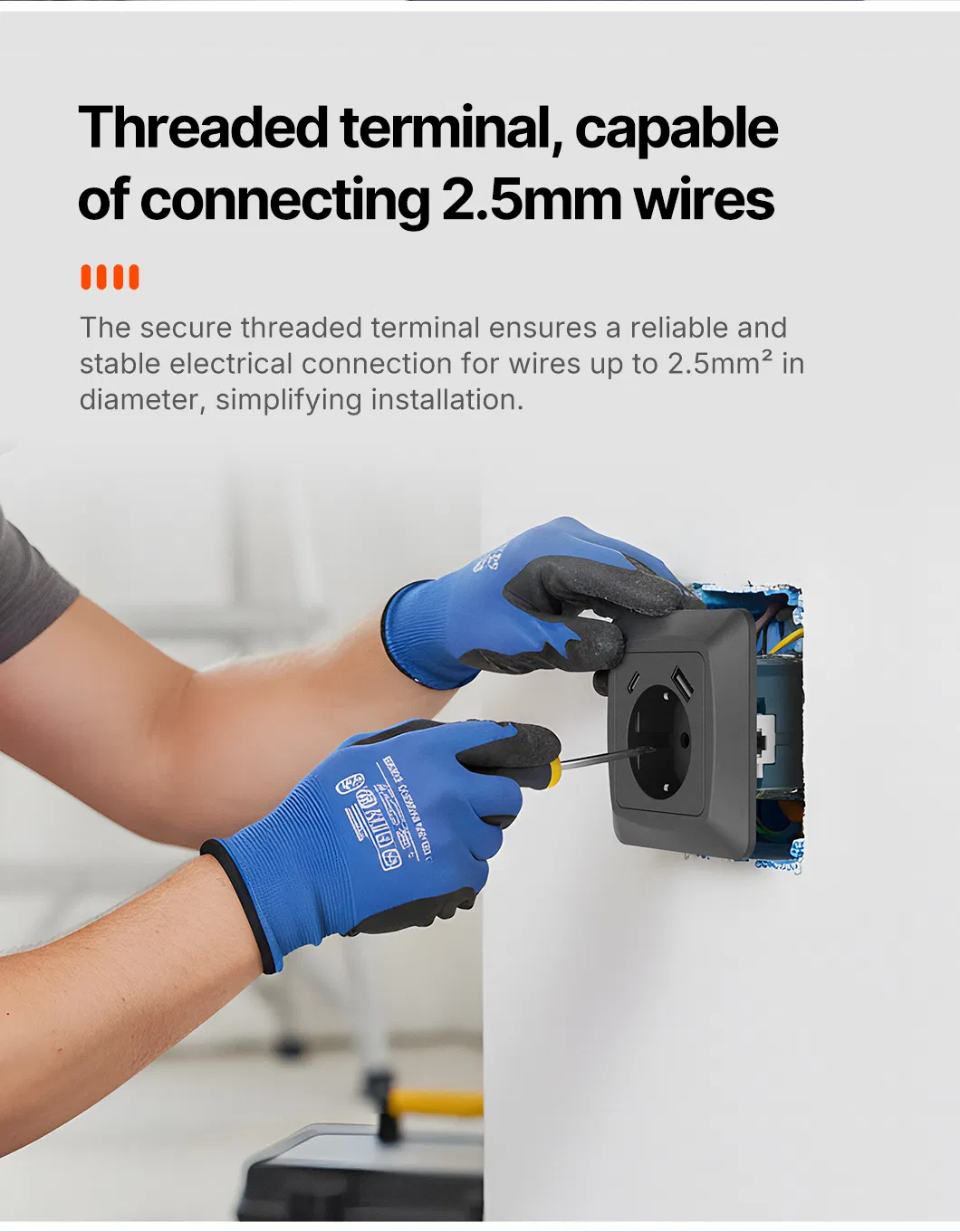

What are the installation requirements?

This is a flush-mounted device compatible with standard installation boxes with a minimum depth of 40mm. It uses a claw and screw fastening method.

What certifications does the product hold?

The product is fully certified with CE and ROHS marks, ensuring compliance with European safety and environmental regulations.

Is the material halogen-free?

Yes, the thermoplastic material used in this socket is halogen-free, making it safer in the event of high temperatures.
