| Model NO. | HE200-1200-O | Phase | Single |
|---|---|---|---|
| Output Power | >1000W | Certification | CE, ROHS, ISO9001, FCC |
| Type | DC/AC Inverters | Power Source | Solar Power |
| Circuit Topologies | Half-Bridge Type | Nature of Wave String | Sine Wave Inverter |
| Max PV Input Power | 800W | Nominal Output Voltage | 220/230/240VAC |
| Power Factor | >0.99 | Max Efficiency | 0.98 |
| Full Load | 1200W | MPPT Voltage Range | 17~115V |
| Operating Temp | -10°C~50°C | Humidity | 5% to 95% (Non-Condensing) |

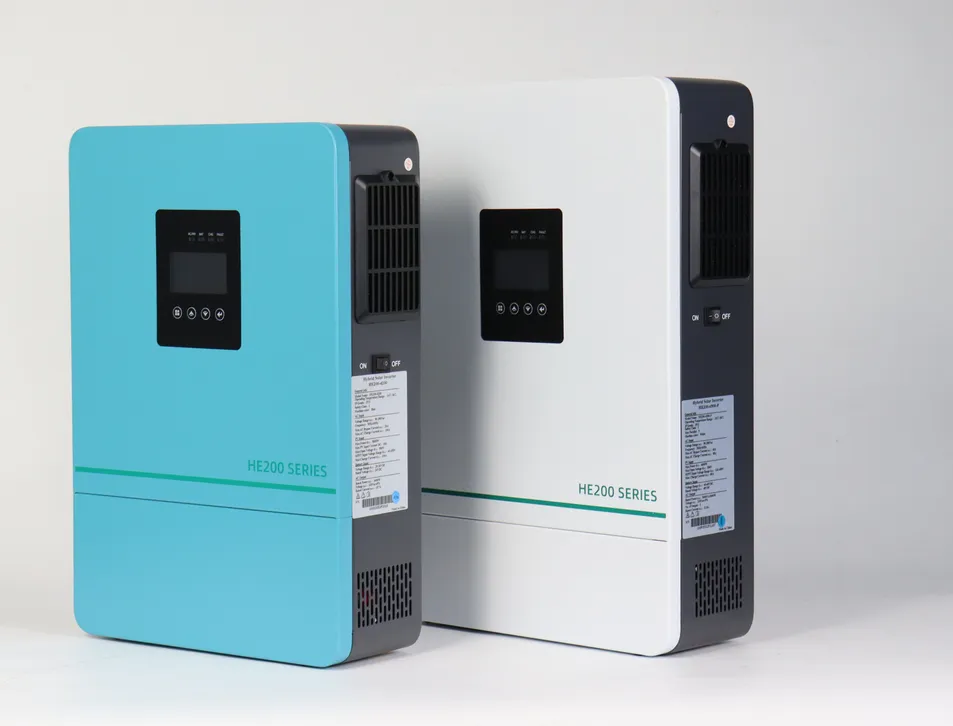

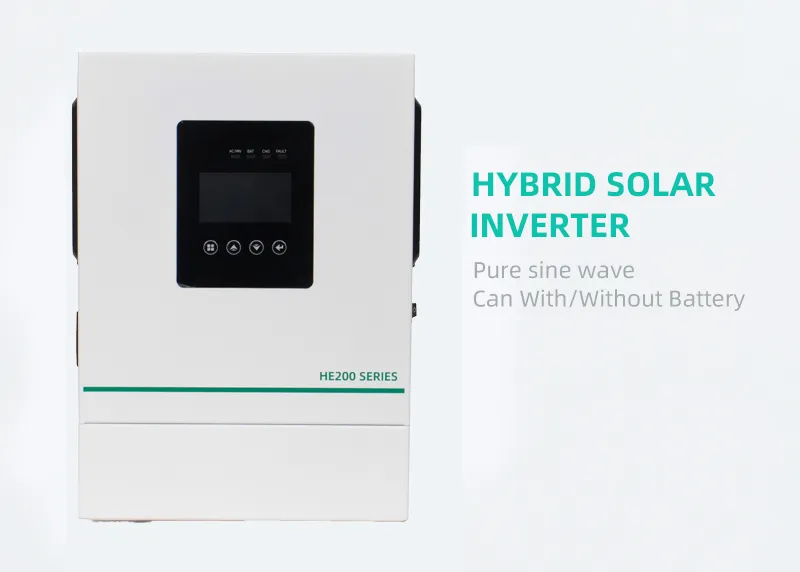

HE200 is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. Designed with a portable size, it supports uninterruptible power supply (UPS) switching and allows for customizable battery charging voltage and current settings.
| Inverter Output Parameters | |
|---|---|
| Rated Output Power | 1200W |
| Rated Output Voltage | 240Vac±5% (Single Phase) |
| Rated Output Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| PV Input & Battery | |
|---|---|
| Max PV Input Power | 800W |
| MPPT Number | 1 |
| Max Open Circuit Voltage | 115Vdc |
| Rated Battery Voltage | 12V |
| Max Hybrid Charging Current | 100A |
| Battery Type | Lead acid / Gel / Lithium battery |

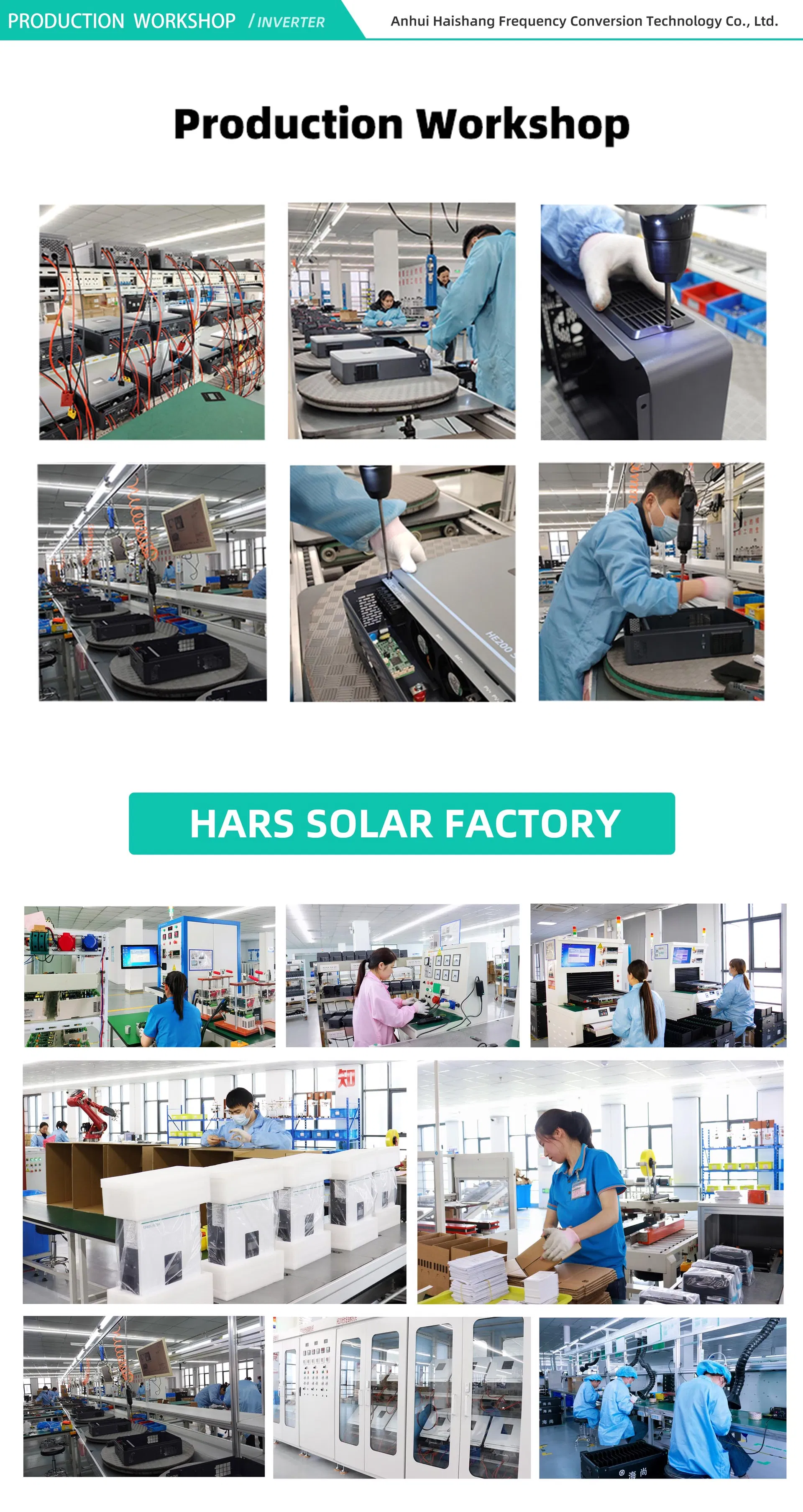

Our production facility integrates advanced R&D, production, and technical services. With an automated production rate of up to 80%, we ensure stable supply and consistent product quality. Our facilities include specialized photovoltaic production centers and multiple technical research centers providing ODM and OEM services.
